"Space Age Oil Filtration Technology Allows You to
go
10 Times Longer Between Oil Changes!"

"Oil doesn't "wear out" - it gets dirty!" Perfect Filtration's Ultimate Oil Filters can give you 50,000+ miles, or thousands more hours between oil changes!
  • Removes Soot, Carbon and Coolant
  • Removes Contaminants Below 1 Micron
  • Reduces Fuel Dilution
  • Reduces Engine Wear by 89%
  • Reduces Wear Related Repairs
  • Increases Engine/Equipment Life
  • Cuts Oil Drain Cost by 50% or More!

Contact Us About Perfect Filtration!


Despite What You've Been Told,
Oil Does NOT "Wear Out" . . .

At least not nearly as fast as we're led to believe! However, it does become contaminated to the point that it cannot lubricate and protect your engine or equipment. Contamination is a normal result of engine and machinery operation - there is simply no way to avoid it.

The solution has been to filter the oil of contaminants before it reaches critical engine components by placing a filter directly in the oil system. The problem is that typical filters cannot eliminate much of the contamination, so your lubricating oil must eventually be changed when it can no longer effectively lubricate and protect your engine or equipment. Therefore, frequent oil changes are directly related to the typical filter's inability to filter effectively.

It's Been Known for Decades that Factory
Full Flow Oil Filters are Inadequate

According to oil filtration studies done by a major oil company and a large diesel engine manufacturer in the 1960's, contaminants less than 5 microns cause most engine wear. Yet, most of the filters made today have difficulty filtering to less than 20-40 microns. The problem is that the filters must be porous enough to allow full flow, limiting their ability to filter. If they were made to filter any finer, they would become clogged, the built in filter bypass would open, and the engine would receive unfiltered oil which is even worse than poorly filtered oil!

But There IS a Solution - Now YOU
Can Do Something About It!

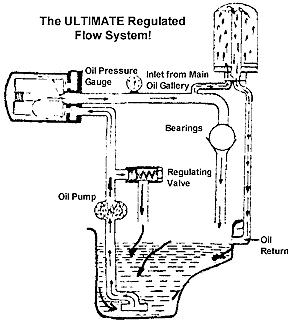

Perfect Filtration filters, on the other hand, are in a loop independent of the main lubrication system. By limiting the flow that they must handle, we're able to filter contamination to well under 1 micron!

This highly purified oil gives you much less friction and wear, and much cooler running, longer running engines and/or equipment. Tests showed that using a secondary "bypass filter" in addition to the full flow factory filter reduced:

  • Rod Bearing Wear - 98%

  • Main Bearing Wear - 96%

  • Piston Ring Wear - 92%

  • Average Wear - 95%

Perfect Filtration maintains your oil at a very high degree of cleanliness, ultimately saving you a substantial amount of money through reduced wear, longer fluid life, and fewer repairs. 100,000 miles (or more - see performance examples) is truly possible between oil drains while protecting your engine better than changing oil every 3,000 to 5,000 miles!

All we recommend is that you have your oil tested every 15,000 miles (or 250 hours) to ensure it's further usability and get ready to save a fortune in maintenance costs, oil drain costs, and wear and tear on your engine or equipment!

These systems have proven themselves on heavy equipment, trucks, autos, locomotives and sea going vessels!

Contact Us About Perfect Filtration!


WANT PROOF? CHECK THESE OUT!
Test Results Testimonials Photos
New Oil vs. Perfect Filtration Filtered Oil - You'll be Shocked by the results! See how a Chevrolet went 118,000 miles on the same oil (and was still going strong)! See photos of actual Perfect Filtration Systems in use saving people money!

Oil Filter Applications and Dimensions

Contact Us For Size and Application Details


(Click to Enlarge)

(Click to Enlarge)
Click Here for More Photos of Installations
